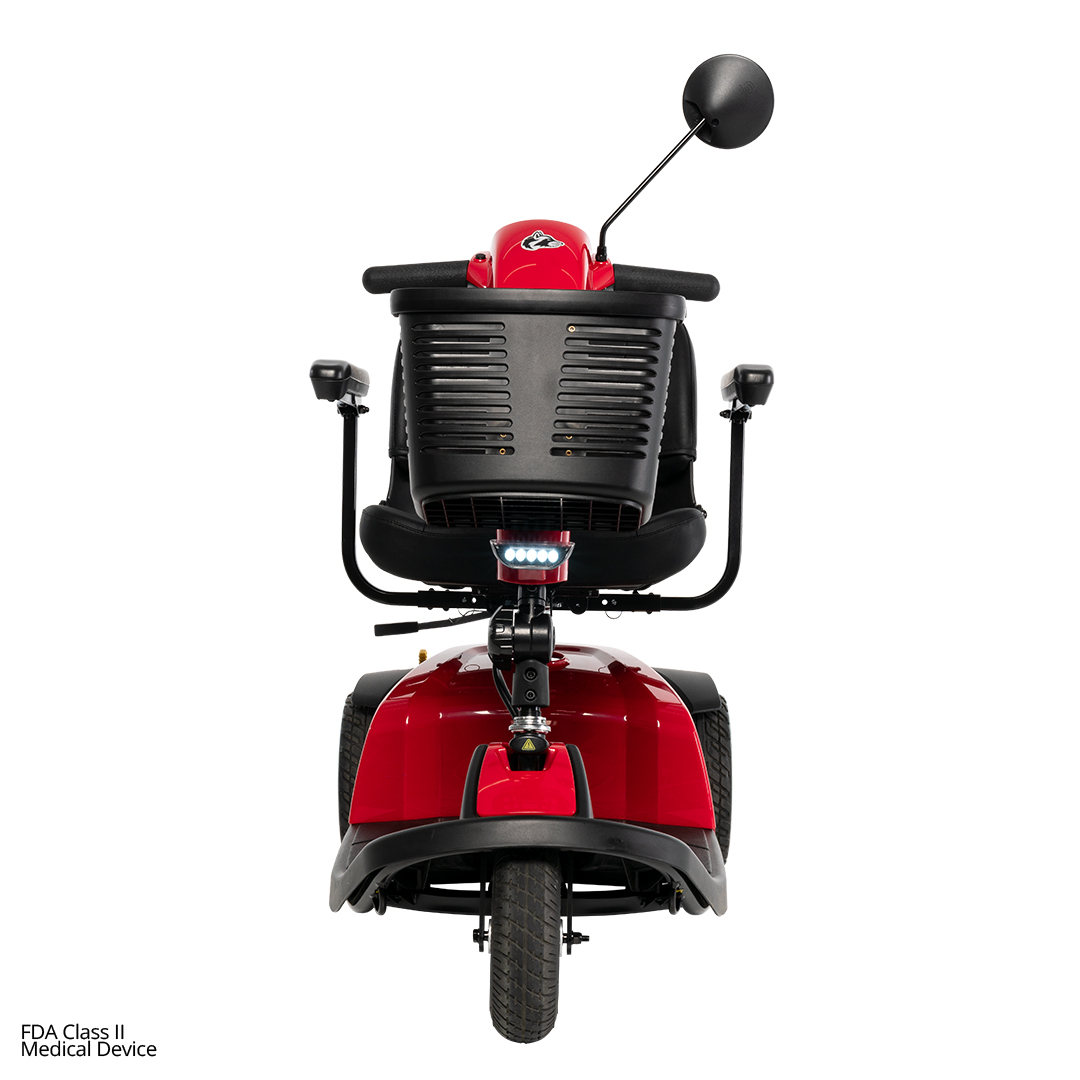

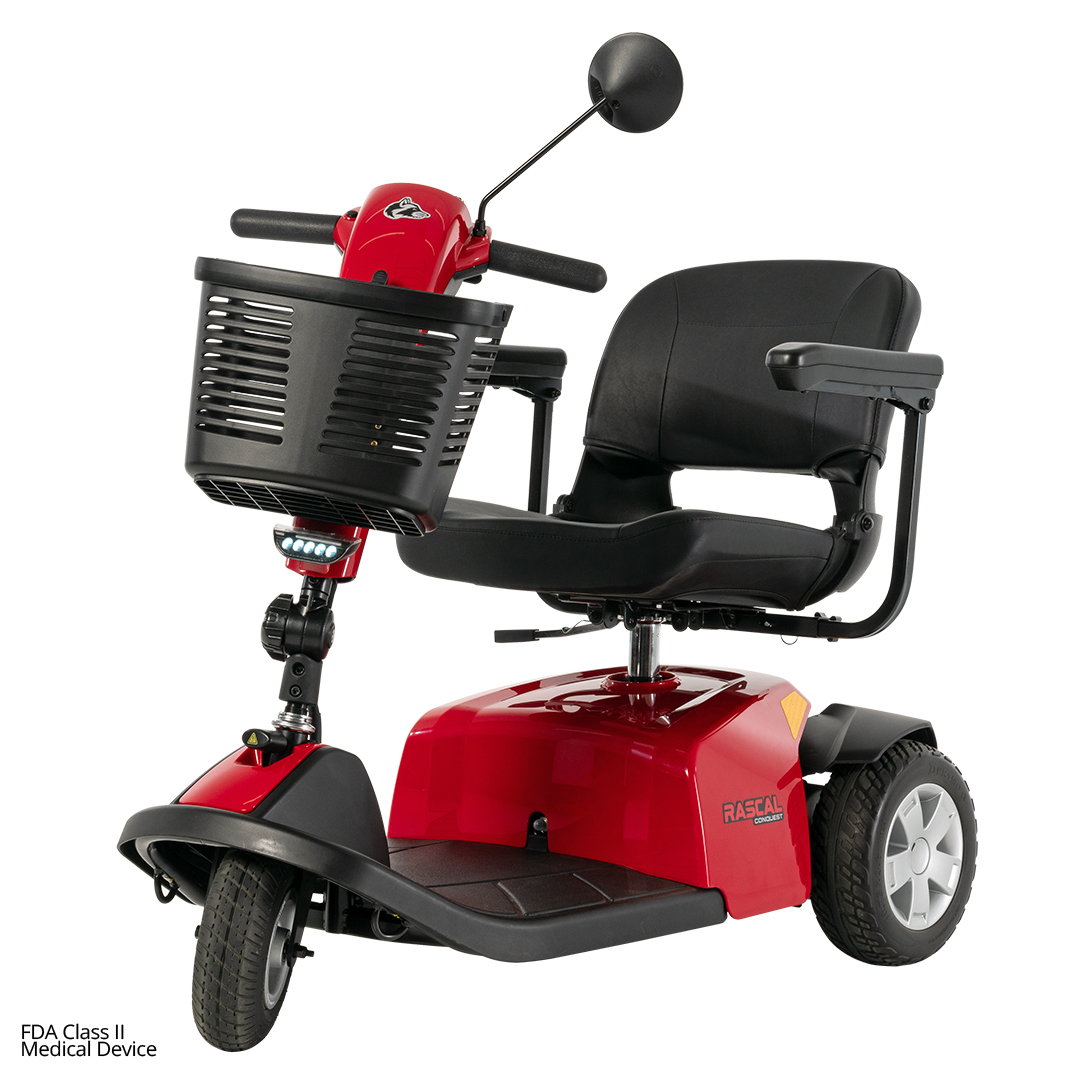

    Rascal® Conquest 3-Wheel Mobility Scooter

    SKU: RSC103RED1001: Conquest 3W 10"

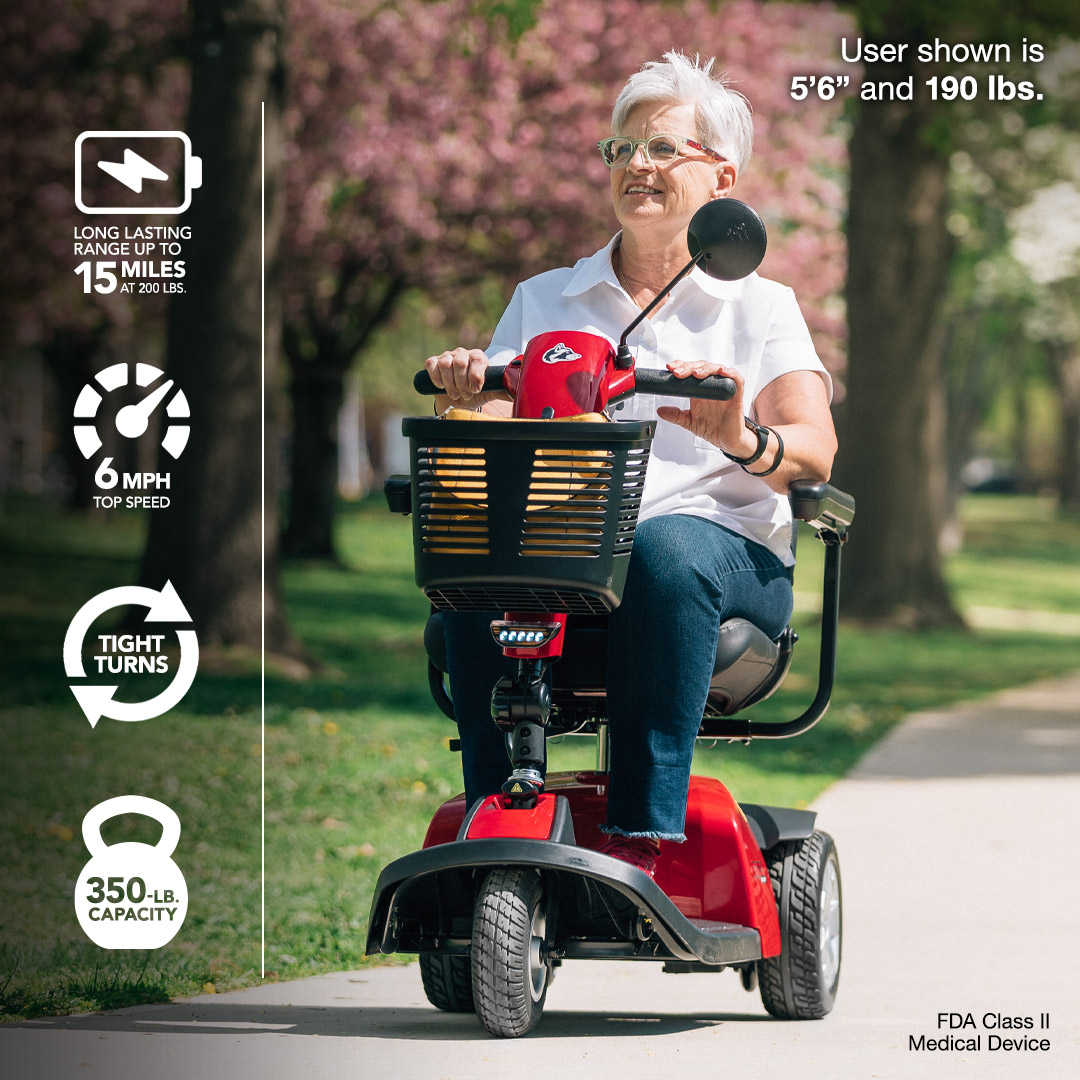

    For durability and maneuverability to meet your needs, turn to the Rascal® Conquest 3-Wheel mobility scooter. Its three 10-inch solid tires help you make tight turns to confidently navigate narrow environments, while a 350-lb. weight capacity and battery range of up to 15.4 miles (at 200 lbs.) will keep you powered throughout all the day’s activities. With an LED headlight to illuminate the path ahead, ride day or night. For personalized comfort, adjust the width of the armrests, angle of the tiller, and height of the seat to your liking. Plus, the swivel seat function allows you to make transfers safely and access a variety of surfaces. The Rascal® Conquest 3-Wheel is an FDA Class II Medical Device, meeting the most stringent testing standards for a top-quality mobility experience.


    Rascal Conquest 3-Wheel Mobility Scooter Videos

    • Ideal for Varied Terrain
    • Ride Through the Park
    • Make Tight Turns
    • Explore Your World
    • Easy to Operate
    • Ride and Relax
    • Product Features
    • Unboxing
    Copy
    Source
    • Features
    • Specifications
    • Manuals

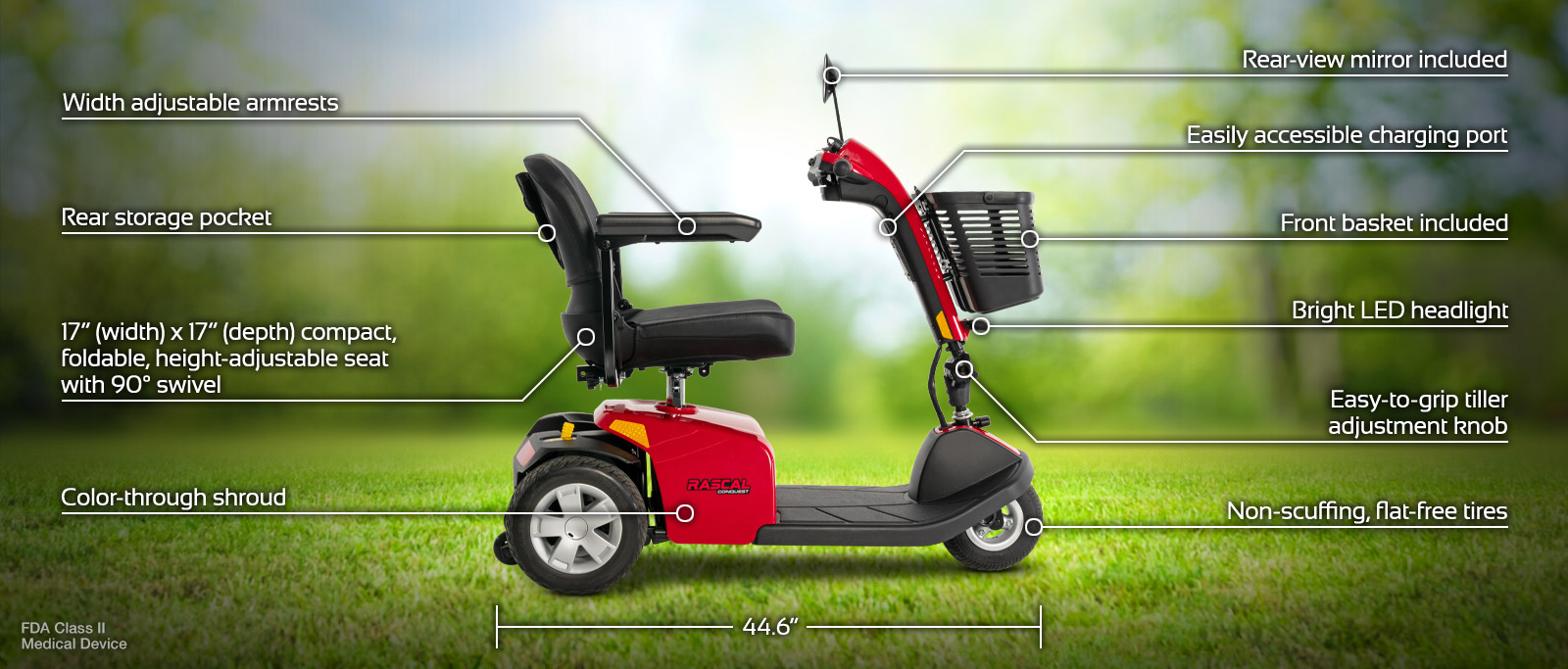

    • FDA CLASS II MEDICAL DEVICE: FDA Class II Medical Devices are designed to aid individuals with mobility impairments. Rascal units have been rigorously tested to the highest standards to ensure consumer safety and long-term satisfaction.
    • MOBILITY PERFORMANCE: With a weight capacity of 350 lbs. and the ability to travel 15.4 miles on a single battery charge at 200 lbs., you’re equipped with a dependable mobility solution in your everyday life, whether at home or in town.

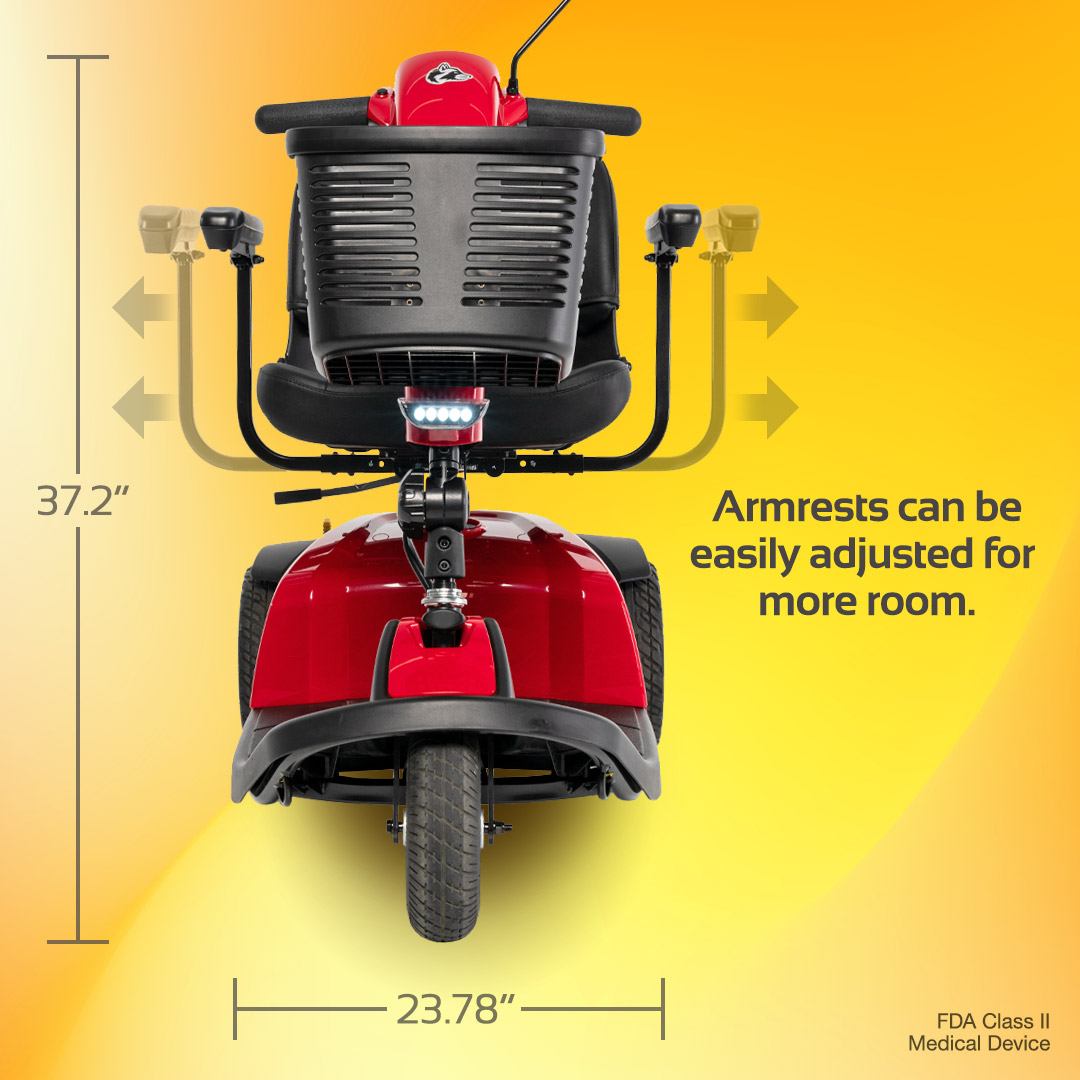

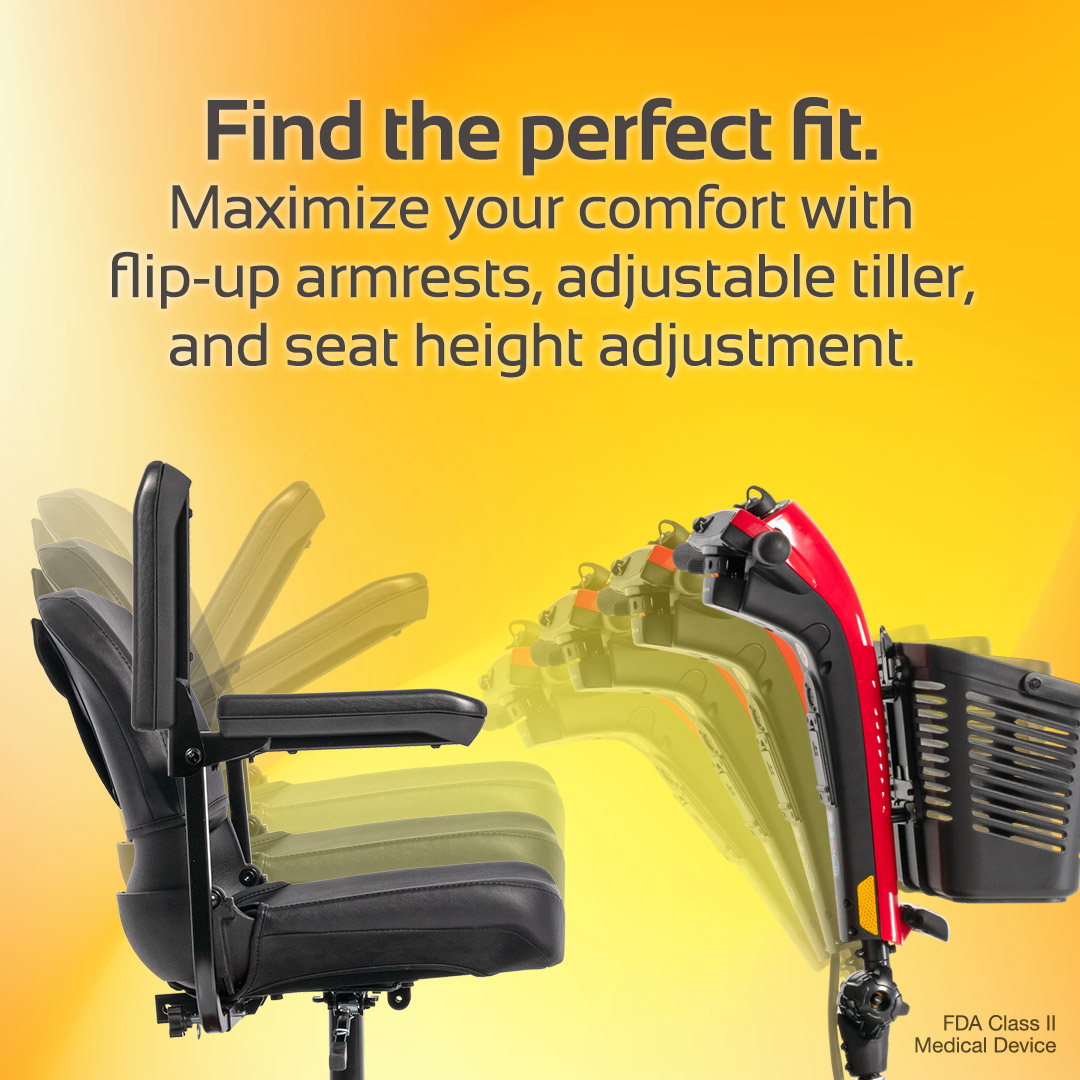

    • ADJUST YOUR COMFORT LEVEL: Find that perfect driving position that meets your mobility needs throughout the day with adjustments for seat height, armrest position, and the steering tiller for maximum comfort.

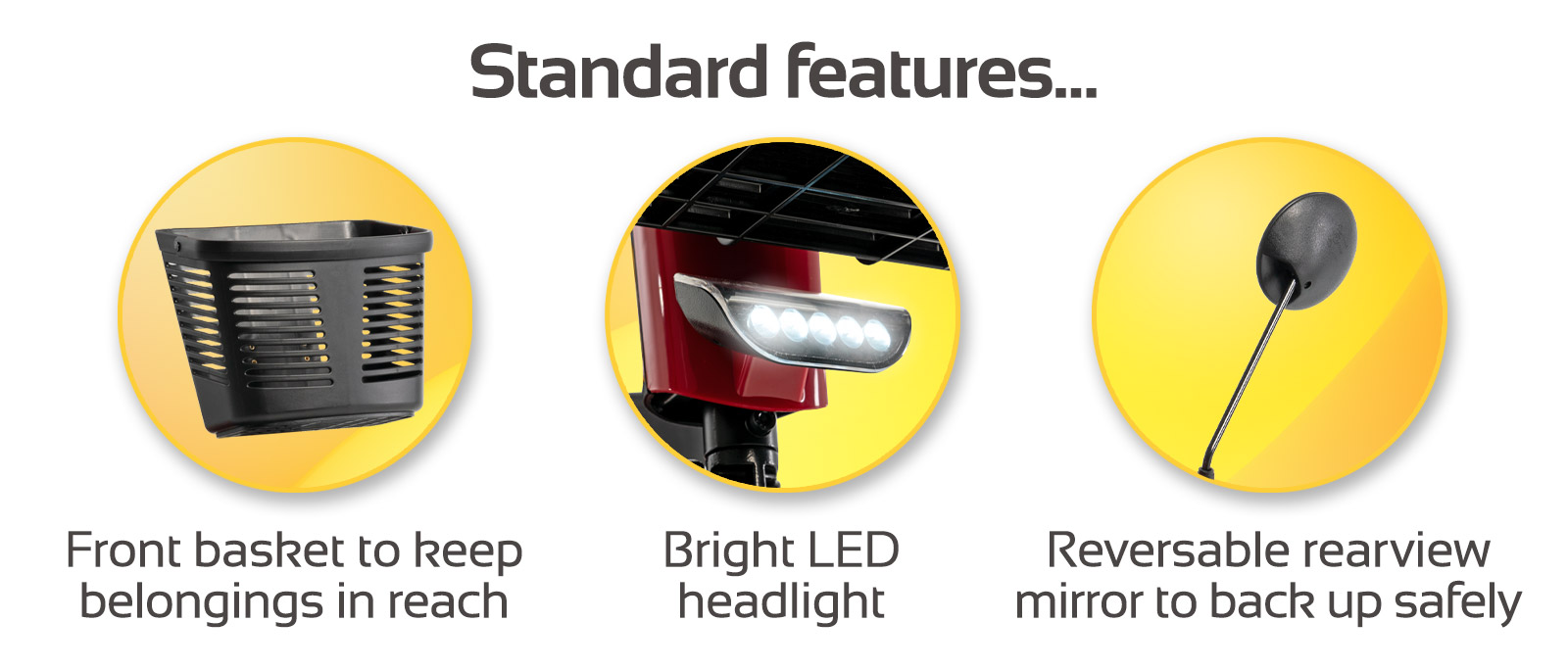

    • MAXIMUM VISIBILITY: You’re provided with a rearview mirror to navigate safely in crowded areas, and a high-intensity LED headlight gives you extra confidence in darker environments.
    • SWIVEL SEAT: With an easy to operate swivel function on the seat, you can safely transfer in and out of your mobility scooter.
      •
    Category Specification
    Model Numbers 3-Wheel: RSC103; 4-Wheel: RSC104
    Weight Capacity 350 lbs.
    Speed (Maximum)1 6 mph
    Ground Clearance2 2.44 in. at motor
    Turning Radius2 3-Wheel: 38.78 in.
    4-Wheel: 51.75 in.
    Reversing Width (K-turn)2 3-Wheel: 50.28 in.
    4-Wheel: 63.74 in.
    Overall Length2 3-Wheel: 44.65 in.
    4-Wheel: 46.97 in.
    Overall Width2 23.78 in.
    Tires2 3-Wheel Front: 9 in. solid
    4-Wheel Front: 10 in. solid
    Rear: 10.75 in. solid
    Range Per Charge1,4 3-Wheel: Up to 15.4 miles at 200 lbs.
    3-Wheel: Up to 12.4 miles at 350 lbs.
    4-Wheel: Up to 16.9 miles at 200 lbs.
    4-Wheel: Up to 10.5 miles at 350 lbs.
    Total Weight Without Batteries5 3-Wheel: 120 lbs.
    4-Wheel: 124.8 lbs
    Standard Seating2 Type: Folded Moldable Plastic
    Material: Black Vinyl
    Weight: 22.8 lbs.
    Width: 17 in.
    Depth: 17 in.
    Drive System Rear-wheel drive, sealed transaxle, 24-volt DC motor
    Dual Braking System Regenerative and electromechanical
    Battery Requirements1 Two 12-volt, deep-cycle
    Battery Pack Weight6 22.2 lbs.
    Battery Charger Off-board charger
    Freewheel Operational Force Less than 60 N
    Drive Control Operational Force Less than 5 N
    Maximum Rated Slope 6°
    Maximum Obstacle Climbing Ability (Ascending/Descending)2 3-Wheel: 2.95 in.
    4-Wheel: 3.54 in.
    Seat to Deck Height 16.25 - 17.75 in
    Seat Height 15.5 in
    Overall Height 37.2 - 38.23 in.
    Measured Sound Level (A-weighted) Less than 65 dB


    1 Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.

    2 Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.

    3 AGM, Gel-Cell, Lithium-ion, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See III. “Batteries and Charging.”

    4 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.

    5 Includes standard seat.

    6 Battery weight may vary based on manufacturer

    NOTE: This product conforms to all applicable ANSI/RESNA and ISO 7176 Series standards. All specifications subject to change without notice.
